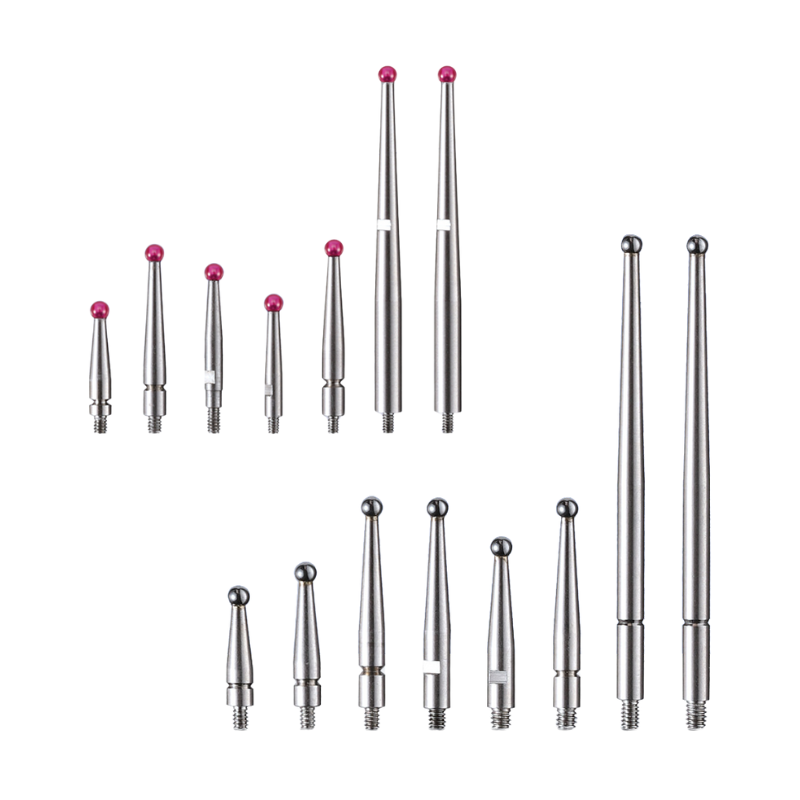

Dial Test Indicator Probe
Suitable for lever dial test indicator.
- High-quality ruby ball
- Wear-resistant and durable
- Anti-magnetic and anti-interference
- Easy to use
- SPECIFICATIONS
| Ball material： | Ruby |
| Stem material： | Stainless Steel |
| Thread： | M1.4 / M1.6 / M1.7 / M1.8 / M2 |

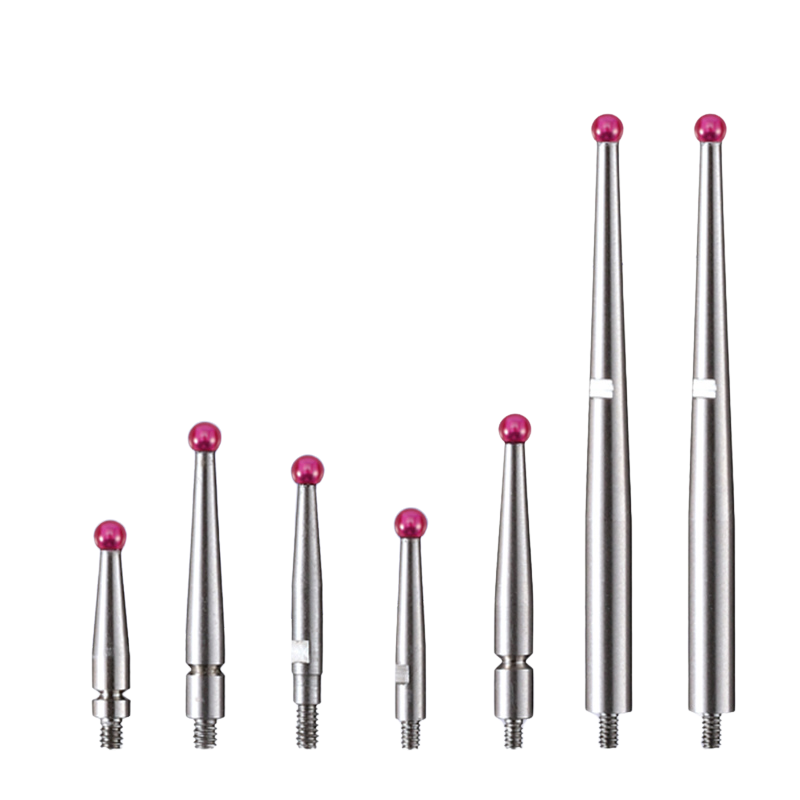

RUBY BALL PROBE
| Order No. | Dimension | Thread | Diameter | Length | Ball Material |
| JITP-1 | M1.4*D2*L14.7 | M1.4 | 2mm | 14.7mm | Ruby |
| JITP-2 | M1.4*D2*L14.8 | M1.4 | 2mm | 20.9mm | Ruby |
| JITP-3 | M1.4*D2*L39.5 | M1.4 | 2mm | 39.5mm | Ruby |
| JITP-4 | M1.6*D1*L20.9 | M1.6 | 1mm | 20.9mm | Ruby |
| JITP-5 | M1.6*D2*L12.8 | M1.6 | 2mm | 12.8mm | Ruby |
| JITP-6 | M1.6*D2*L14.7 | M1.6 | 2mm | 14.7mm | Ruby |
| JITP-7 | M1.6*D2*L17.3 | M1.6 | 2mm | 17.3mm | Ruby |
| JITP-8 | M1.6*D2*L20.9 | M1.6 | 2mm | 20.9mm | Ruby |
| JITP-9 | M1.6*D2*L36.8 | M1.6 | 2mm | 36.8mm | Ruby |
| JITP-10 | M1.6*D2*L44.5 | M1.6 | 2mm | 44.5mm | Ruby |
| JITP-11 | M1.7*D2*L14.7 | M1.7 | 2mm | 14.7mm | Ruby |
| JITP-12 | M1.7*D2*L17.3 | M1.7 | 2mm | 17.3mm | Ruby |
| JITP-13 | M1.8*D2*20.9 | M1.8 | 2mm | 20.9mm | Ruby |
| JITP-14 | M1.8*D2*44.5 | M1.8 | 2mm | 44.5mm | Ruby |
| JITP-15 | M2*D2*L17.3 | M2 | 2mm | 17.3mm | Ruby |
| JITP-16 | M2*D2*L20.9 | M2 | 2mm | 20.9mm | Ruby |
| JITP-17 | M2*D2*44.5 | M2 | 2mm | 44.5mm | Ruby |

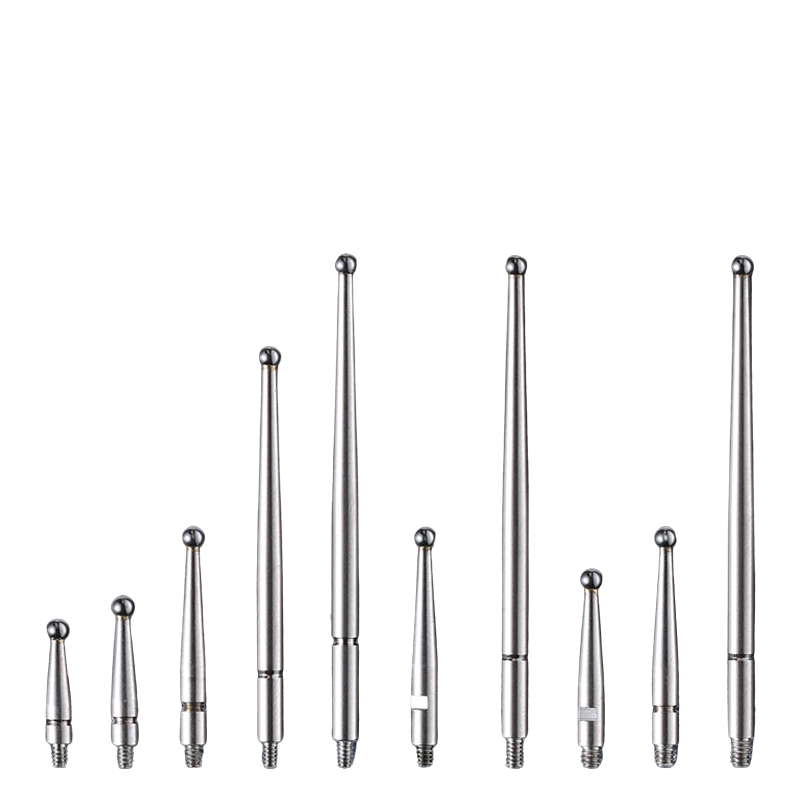

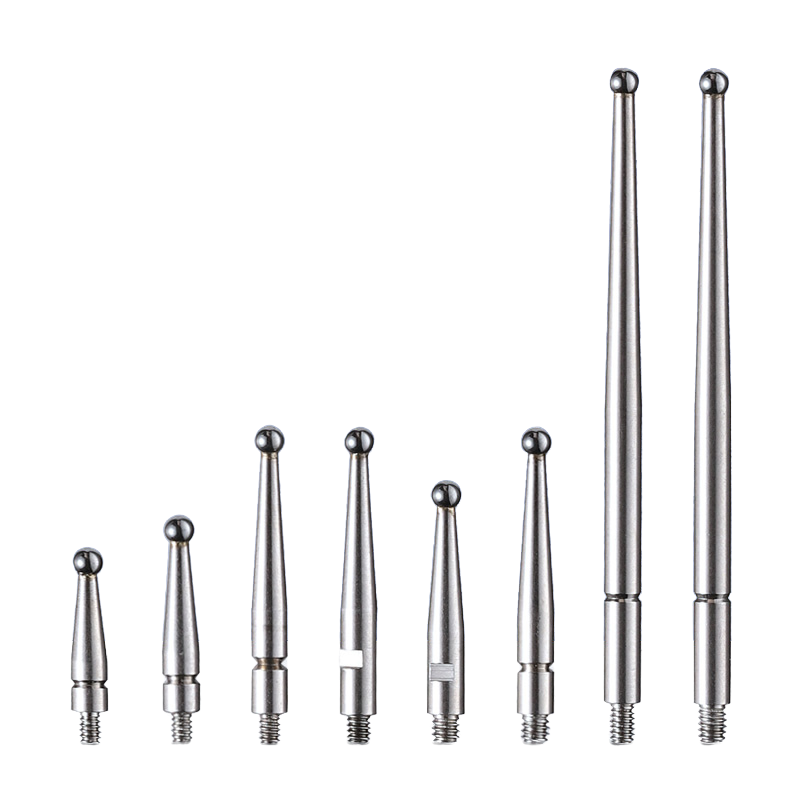

STAINLESS STEEL BALL PROBE
| Order No. | Dimension | Thread | Diameter | Length | Ball Material |
| JITP-18 | M1.4*D2*L14.7 | M1.4 | 2mm | 14.7mm | SS |
| JITP-19 | M1.4*D2*L14.8 | M1.4 | 2mm | 20.9mm | SS |
| JITP-20 | M1.4*D2*L39.5 | M1.4 | 2mm | 39.5mm | SS |
| JITP-21 | M1.6*D1*L20.9 | M1.6 | 1mm | 20.9mm | SS |
| JITP-22 | M1.6*D2*L12.8 | M1.6 | 2mm | 12.8mm | SS |
| JITP-23 | M1.6*D2*L14.7 | M1.6 | 2mm | 14.7mm | SS |
| JITP-24 | M1.6*D2*L17.3 | M1.6 | 2mm | 17.3mm | SS |
| JITP-25 | M1.6*D2*L20.9 | M1.6 | 2mm | 20.9mm | SS |
| JITP-26 | M1.6*D2*L36.8 | M1.6 | 2mm | 36.8mm | SS |
| JITP-27 | M1.6*D2*L44.5 | M1.6 | 2mm | 44.5mm | SS |
| JITP-28 | M1.7*D2*L14.7 | M1.7 | 2mm | 14.7mm | SS |
| JITP-29 | M1.7*D2*L17.3 | M1.7 | 2mm | 17.3mm | SS |
| JITP-30 | M1.8*D2*20.9 | M1.8 | 2mm | 20.9mm | SS |
| JITP-31 | M1.8*D2*44.5 | M1.8 | 2mm | 44.5mm | SS |
| JITP-32 | M2*D2*L17.3 | M2 | 2mm | 17.3mm | SS |
| JITP-33 | M2*D2*L20.9 | M2 | 2mm | 20.9mm | SS |
| JITP-34 | M2*D2*44.5 | M2 | 2mm | 44.5mm | SS |
Mitutoyo Dial Test Indicator Contact Points
Length (mm) Part No.
9.4 12.9 — — 21CZA044 21CZA036 21CZA045 21CZA212 513-401-10E 513-471-10E
11.2 14.7— — 190547 190548 103017 103010 103018 21CZA209
17.4 20.9 — —190549 190550 103013 103006 103014 21CZA201
18.7 22.2 — —190654 190653 137558 137557 137559 21CZA210
41.0 44.5 — —190656 190655 136235 136013 136236 21CZA211
33.3 36.8 — — 137746 129949 137747
8.6 12.0 — — 136756 136104 136758
6.5 24.0 — — 102824 102825 102826
